中断优先级

  1. MSP430共有69个中断向量,可以分为不同优先级:
  • 最高优先级:RESET (复位)
  • 次高优先级:NMI (非屏蔽中断)
  • 高优先级组(可配置优先级):
    1) PMM 电源管理模块
    2) PORT1 端口中断
    3) PORT2 端口中断
    4) ADC10 ADC转换完成中断
    5) USCI A0/B0 UART/SPI中断
    6) TIMER0_A0/A1/B0 定时器中断
    7) TIMER1_A0/A1/B0 定时器中断
    8) FLASH 控制器中断
  • 中优先级组(可配置优先级):
    1) COMPARATOR_A 比较器中断
    2) TIMER0_B1 定时器中断
    3) TIMER1_B1 定时器中断
    4) USCI A1/B1 UART/SPI中断
    5) USCI A2/B2 UART/SPI中断
    6) I2C I2C中断
  • 低优先级组:
    1) DMA 数据传输控制器中断
    2) AES 加密模块中断
    3) RTC 实时时钟中断
    4) LCD 驱动器中断
    5) MPY乘法器中断
    6) BSL 启动加载程序中断
  1. 可通过编辑器的都中断管理器配置优先级,也可以通过代码设置每个中断的组优先级。

外部中断

void main()
{
GPIO_setAsInputPin (GPIO_PORT_P1, GPIO_PIN1);//设置为输入模式
GPIO_setAsInputPinWithPullUpResistor (GPIO_PORT_P1, GPIO_PIN1);//设置为输入上拉电阻
GPIO_enableInterrupt (GPIO_PORT_P1, GPIO_PIN1);//启用引脚上的中断
GPIO_selectInterruptEdge(GPIO_PORT_P1,GPIO_PIN1,GPIO_LOW_TO_HIGH_TRANSITION);//设置中断触发方式
GPIO_clearInterrupt (GPIO_PORT_P1, GPIO_PIN1);//清除中断标志
__enable_interrupt();//打开总中断

    //For debugger
    __no_operation();
}
//中断处理函数
#pragma vector=PORT1_VECTOR// P1口中断源
__interrupt void Port_1(void)//声明一个中断服务程序,名为Port_1()
{
    GPIO_toggleOutputOnPin (GPIO_PORT_P4, GPIO_PIN7);
    GPIO_clearInterrupt (GPIO_PORT_P1, GPIO_PIN1);
}

timer

差异

msp430单片机有4个定时器,它们之间有以下区别:

  1. 定时器模块基地址不同:
  • Timer_A0 - 0x0340
  • Timer_A1 - 0x0380
  • Timer_A2 - 0x0400
  • Timer_A3 - 0x0440
  1. 中断向量不同:
  • Timer_A0 - TIMER0_A0_VECTOR, TIMER0_A1_VECTOR
  • Timer_A1 - TIMER1_A0_VECTOR, TIMER1_A1_VECTOR
  • Timer_A2 - TIMER2_A0_VECTOR, TIMER2_A1_VECTOR
  • Timer_A3 - TIMER3_A0_VECTOR, TIMER3_A1_VECTOR
  1. 捕获/比较寄存器CCRx不同:
  • Timer_A0 - CCR0, CCR1, CCR2
  • Timer_A1 - CCR0, CCR1, CCR2
  • Timer_A2 - CCR0, CCR1, CCR2
  • Timer_A3 - CCR0, CCR1, CCR2
  1. 输入/输出管脚映射不同:
    每个Timer_Ax有自己唯一的I/O口映射关系。
  2. 是否支持双模模式:
  • Timer_A0和Timer_A1支持双模块模式
  • Timer_A2和Timer_A3只支持单模块模式
  1. 是否支持分割模式:
  • Timer_A1和Timer_A3支持分割模式
  • Timer_A0和Timer_A2不支持分割模式

产生PWM

#define TIMER_PERIOD 511//预装载值
#define DUTY_CYCLE  350//占空比

void main (void)
{
    //Stop WDT
    WDT_A_hold(WDT_A_BASE);


//定时器TA0.1
    Timer_A_outputPWMParam htim = {0};
    //P1.2复用输出
    GPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P1, GPIO_PIN2);
    //时钟源选为SMCLK = 25MHz
    htim.clockSource = TIMER_A_CLOCKSOURCE_SMCLK;
    //分频系数设为40
    htim.clockSourceDivider = TIMER_A_CLOCKSOURCE_DIVIDER_5;
    //装载值设为12500 - 1
    htim.timerPeriod = TIMER_PERIOD - 1;
    //P1.2 对应 TA0.1 故设为TIMER_A_CAPTURECOMPARE_REGISTER_1
    htim.compareRegister = TIMER_A_CAPTURECOMPARE_REGISTER_1;
    htim.compareOutputMode = TIMER_A_OUTPUTMODE_RESET_SET;
    //初始比较值为装载值的一半 即初始占空比为50%
    htim.dutyCycle = pwm_zkb;
    //P1.2 对应 TA0.1 为TIMER_A0_BASE
    Timer_A_outputPWM(TIMER_A0_BASE, &htim);

    //定时器TA0.2
    GPIO_setAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P1, GPIO_PIN3);
    htim.compareRegister = TIMER_A_CAPTURECOMPARE_REGISTER_2;
    htim.dutyCycle = 250;
    Timer_A_outputPWM(TIMER_A0_BASE, &htim);

    //定时器TA2.1
    GPIO_stAsPeripheralModuleFunctionOutputPin(GPIO_PORT_P2, GPIO_PIN4);
    //时钟源选为SMCLK = 25MHz
    htim.clockSource = TIMER_A_CLOCKSOURCE_SMCLK;
    //分频系数设为40
    htim.clockSourceDivider = TIMER_A_CLOCKSOURCE_DIVIDER_5;
    //装载值设为12500 - 1
    htim.timerPeriod = TIMER_PERIOD - 1;
    //P1.2 对应 TA0.1 故设为TIMER_A_CAPTURECOMPARE_REGISTER_1
    htim.compareRegister = TIMER_A_CAPTURECOMPARE_REGISTER_1;
    htim.compareOutputMode = TIMER_A_OUTPUTMODE_RESET_SET;
    //初始比较值为装载值的一半 即初始占空比为50%
    htim.dutyCycle = 200;
    //P1.2 对应 TA0.1 为TIMER_A0_BASE
    Timer_A_outputPWM(TIMER_A2_BASE, &htim);


    __enable_interrupt();//打开总中断

    //For debugger
    __no_operation();
}

修改占空比

Timer_A_setCompareValue (TIMER_A0_BASE,TIMER_A_CAPTURECOMPARE_REGISTER_1, pwm_zkb);//设置占空比,1.定时器基地址2.比较寄存器3.比较值

定时器中断

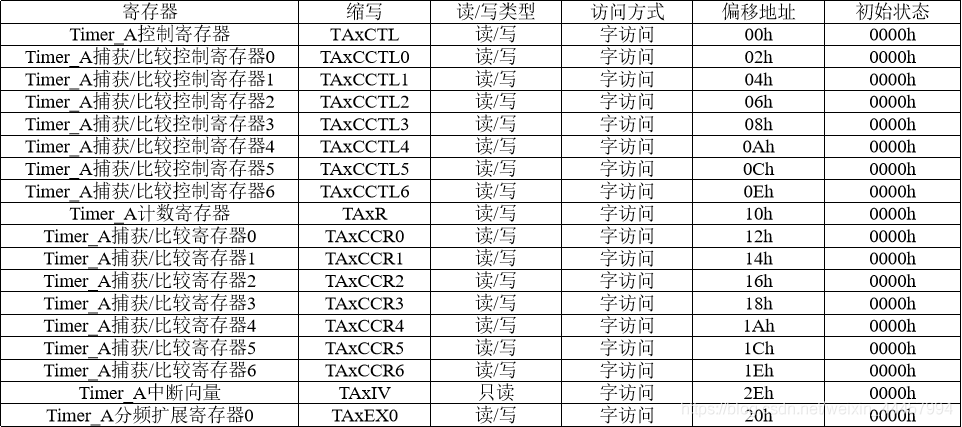

简介

16位定时器Timer_A具有两个中断向量,分别如下:

  • TAxCCR0的中断向量CCIFG0
    • TAxCCR0中断标志位CCIFG0在Timer_A中断中具有最高的中断优先级。当相应的TAxCCR0中断请求被响应后,TAxCCR0中断标志位CCIFG0自动复位
  • 具有其余TAxCCRn的中断标志CCIFGn及TAIFG的中断向量TAIV
    • TAxIV中断主要包括TAxCCRn的中断标志CCIFGn和TAIFG中断标志。中断向量寄存器可被用来判断当前被挂起的Timer_A中断,之后通过查中断向量表得到中断服务程序的入口地址,并将其添加到程序计数器中,程序将自动转入中断服务程序。禁用Timer_A中断功能并不影响TAxIV中断向量寄存器的值。
    • 对TAxIV中断向量寄存器的读或写,都将自动清除挂起的最高优先级中断标志位。如果同时也置位了其他中断标志位,在当前中断服务程序执行完毕后,将自动立即响应新的中断请求。

CCR0中断

void Timer_A0_Init(void)
{
    //timer0 CCR0中断延时10ms,
    Timer_A_initUpModeParam htim = {0};
    htim.clockSource = TIMER_A_CLOCKSOURCE_ACLK;    //时钟源选为ACLK = 32768Hz
    htim.clockSourceDivider = TIMER_A_CLOCKSOURCE_DIVIDER_5;   //5分频
    htim.timerPeriod = 66- 1;                                 //计数值设为512 - 1
    htim.timerInterruptEnable_TAIE = TIMER_A_TAIE_INTERRUPT_DISABLE;// 禁止了定时器溢出中断(TAIE),只启用了CCR0的中断
    htim.captureCompareInterruptEnable_CCR0_CCIE = TIMER_A_CCIE_CCR0_INTERRUPT_ENABLE;      //使能CCR0中断
    htim.timerClear = TIMER_A_DO_CLEAR; //把定时器的定时计数器,分频计数器的计数值清零
    htim.startTimer = true;             //初始化后立即启动定时器

    Timer_A_initUpMode(TIMER_A0_BASE, &htim);
    //配置定时器A0为增计数模式
}
//中断服务函数
#pragma vector=TIMER0_A0_VECTOR
__interrupt
void TIMER0_A0_ISR (void)
{
    GPIO_toggleOutputOnPin(GPIO_PORT_P4, GPIO_PIN7);	//翻转P4.7
}

TAIE中断

void Timer_A_Init(void)
{
    //5ms延时
    Timer_A_initUpModeParam htim = {0};
    htim.clockSource = TIMER_A_CLOCKSOURCE_SMCLK;   //时钟源选为SMCLK = 25MHz
    htim.clockSourceDivider = TIMER_A_CLOCKSOURCE_DIVIDER_5;    //5分频
    htim.timerPeriod = 25000 - 1;                                   //计数值设为25000 - 1
    htim.timerInterruptEnable_TAIE = TIMER_A_TAIE_INTERRUPT_ENABLE; //使能TALE中断
    htim.captureCompareInterruptEnable_CCR0_CCIE = TIMER_A_CCIE_CCR0_INTERRUPT_DISABLE;
    htim.timerClear = TIMER_A_DO_CLEAR; //把定时器的定时计数器,分频计数器的计数值清零
    htim.startTimer = true; //初始化后立即启动定时器

    Timer_A_initUpMode(TIMER_A0_BASE, &htim);
    //配置定时器A为增计数模式
}
//中断服务函数
#pragma vector=TIMER0_A1_VECTOR
__interrupt
void TIMER0_A1_ISR (void)
{
    switch(TA0IV)
    {
        case TA0IV_NONE:
            break;
        case TA0IV_TACCR1:
            break;
        case TA0IV_TACCR2:
            break;
        case TA0IV_TACCR3:
            break;
        case TA0IV_TACCR4:
            break;
        case TA0IV_5:
            break;
        case TA0IV_6:
            break;
        case TA0IV_TAIFG:
            GPIO_toggleOutputOnPin(GPIO_PORT_P4, GPIO_PIN2);
            break;
        default:
            break;
    }
}

测量脉宽长度

void Ch_Sr04_Init()
{
    Timer_A_initContinuousModeParam htim = {0};//把定时器TIMER_A2配置为连续模式运行。这是为了提供时钟和计数基础。
    htim.clockSource = TIMER_A_CLOCKSOURCE_SMCLK;//选择定时器时钟源为SMCLK,系统主时钟
    htim.clockSourceDivider = TIMER_A_CLOCKSOURCE_DIVIDER_1;//时钟不分频,用于提供高精度计数时钟
    htim.timerInterruptEnable_TAIE = TIMER_A_TAIE_INTERRUPT_ENABLE;//使能定时器溢出中断TAIE
    htim.timerClear = TIMER_A_DO_CLEAR;//初始化时清空定时器计数器。
    htim.startTimer = true;//配置完成后启动定时器。
    Timer_A_initContinuousMode(TIMER_A2_BASE, &htim);//调用初始化函数配置定时器CONT模式

    //TA2.2对应TIMER_A2_BASE, TIMER_A_CAPTURECOMPARE_REGISTER_2
    GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P2, GPIO_PIN5);//设置P2.5作为定时器辅助功能输入引脚
    Timer_A_initCaptureModeParam capture_htim = {0};
    capture_htim.captureRegister = TIMER_A_CAPTURECOMPARE_REGISTER_2;//选择使用捕捉/比较寄存器2,即CCR2进行输入捕捉
    capture_htim.captureMode = TIMER_A_CAPTUREMODE_RISING_AND_FALLING_EDGE;//配置为上升沿和下降沿都可以触发捕捉
    capture_htim.captureInputSelect = TIMER_A_CAPTURE_INPUTSELECT_CCIxA;//选择CCIxA作为输入捕捉的信号源,在本例中CCIxA映射到P2.5
    capture_htim.synchronizeCaptureSource = TIMER_A_CAPTURE_SYNCHRONOUS;//配置为同步捕捉模式
    capture_htim.captureInterruptEnable = TIMER_A_CAPTURECOMPARE_INTERRUPT_ENABLE;//使能CCR2中断
    capture_htim.captureOutputMode = TIMER_A_OUTPUTMODE_OUTBITVALUE;//输出模式配置为输出PWM波形
    Timer_A_initCaptureMode(TIMER_A2_BASE,&capture_htim);//调用函数初始化捕捉模式
}
//计数一次1us
#pragma vector=TIMER2_A1_VECTOR
__interrupt
void TIMER2_A1_ISR (void)
{
    static uint16_t Overflow_Times = 0;
    static uint16_t Sign_Begin = 0, Sign_End = 0;

    switch(TA2IV)
    {
        case TA2IV_TACCR2://CCR2捕捉中断
            if(GPIO_getInputPinValue(GPIO_PORT_P2,GPIO_PIN5))//如果是上升沿,记录当前计数值到Sign_Begin
            {
                Sign_Begin = Timer_A_getCaptureCompareCount(TIMER_A2_BASE,TIMER_A_CAPTURECOMPARE_REGISTER_2);
            }
            else//如果是下降沿,记录到Sign_End
            {
                Sign_End = Timer_A_getCaptureCompareCount(TIMER_A2_BASE,TIMER_A_CAPTURECOMPARE_REGISTER_2);
                if(!Overflow_Times)
                    Sign_Counts = Sign_End - Sign_Begin;
                else
                {
                    Sign_Counts = (uint32_t)65536 * Overflow_Times + Sign_End - Sign_Begin;//计算脉冲宽度计数Sign_Counts
                    Overflow_Times = 0;
                }
            }
            Timer_A_clearCaptureCompareInterrupt(TIMER_A2_BASE,TIMER_A_CAPTURECOMPARE_REGISTER_2);// 清除CCR2中断标志
            break;
        case TA2IV_TAIFG:// case TA2IV_TAIFG: 溢出中断
            if(GPIO_getInputPinValue(GPIO_PORT_P2,GPIO_PIN5))// 根据当前电平判断是否发生溢出
            {
                ++Overflow_Times;// 更新溢出次数变量Overflow_Times
            }
            else
                Overflow_Times = 0;
            Timer_A_clearTimerInterrupt(TIMER_A2_BASE);//清除溢出中断标志
            break;
        default:
            break;
    }
}

ADC

msp4305529内置12位ADC

单通道中断转换

void adc_init()
{
       //将P6.0引脚设置为ADC外设输入引脚
       GPIO_setAsPeripheralModuleFunctionInputPin(
               GPIO_PORT_P6,
               GPIO_PIN0
               );
       /*
                       初始化ADC12_A,设置采样保持信号源为SC时钟,时钟源为内部ADC12OSC,时钟预分频为1
        */
       ADC12_A_init(ADC12_A_BASE,
               ADC12_A_SAMPLEHOLDSOURCE_SC,
               ADC12_A_CLOCKSOURCE_ADC12OSC,
               ADC12_A_CLOCKDIVIDER_1);

       ADC12_A_enable(ADC12_A_BASE);//使能ADC12_A模块

       /*
                   配置采样定时器,缓冲区0-7的采样保持时间为64个时钟周期,缓冲区8-15默认为4个时钟周期,关闭多次采样模式
        */
       ADC12_A_setupSamplingTimer(ADC12_A_BASE,
               ADC12_A_CYCLEHOLD_64_CYCLES,
               ADC12_A_CYCLEHOLD_4_CYCLES,
               ADC12_A_MULTIPLESAMPLESDISABLE);

        //Configure Memory Buffer
        /*
        * Base address of the ADC12_A Module
        * Configure memory buffer 0
        * Map input A0 to memory buffer 0
        * Vref+ = AVcc
        * Vr- = AVss
        * Memory buffer 0 is not the end of a sequence
        */
        ADC12_A_configureMemoryParam param = {0};
        param.memoryBufferControlIndex = ADC12_A_MEMORY_0;//配置内存缓冲区0
        param.inputSourceSelect = ADC12_A_INPUT_A0;//映射到输入通道A0
        param.positiveRefVoltageSourceSelect = ADC12_A_VREFPOS_AVCC;
        param.negativeRefVoltageSourceSelect = ADC12_A_VREFNEG_AVSS;//设置正负参考电压源为AVCC和AVSS
        param.endOfSequence = ADC12_A_NOTENDOFSEQUENCE;//设置内存缓冲区0不是序列结束,连续转换不用
        ADC12_A_configureMemory(ADC12_A_BASE ,&param);

        //使能内存缓冲区0的中断ADC12IE0
        ADC12_A_clearInterrupt(ADC12_A_BASE,
               ADC12IFG0);
        ADC12_A_enableInterrupt(ADC12_A_BASE,
               ADC12IE0);
}
uint16_t result0;
int main(void) {
    WDT_A_hold(WDT_A_BASE);
    SystemClock_Init();
    UART_Init(USCI_A1_BASE, 115200);
    OLED_Init();
    OLED_Clear();

    adc_init();
    _EINT();//打开总中断
    while(1)
    {
    /*第一个参数ADC12_A_BASE:ADC模块的基地址。- 第二个参数ADC12_A_MEMORY_0:指定使用内存缓冲区0来保存转换结果。- 第三个参数ADC12_A_SINGLECHANNEL:指定单通道单次转换模式。1. 单次单通道转换:ADC12_A_SINGLECHANNEL
    每次启动转换时只采集1个通道的样本,转换一次后就停止。
    2. 重复单通道转换:ADC12_A_REPEATED_SINGLECHANNEL
    连续重复转换单通道,直到被停止。
    3. 单次多通道转换:ADC12_A_SINGLECHANNEL
    每次启动转换时依次采集多个通道的样本,每通道转换一次后就停止。
    4. 重复多通道转换:ADC12_A_REPEATED_SEQOFCHANNELS
    连续重复扫描转换多个通道,像轮询一样循环转换。
    5. 环形缓冲区转换:ADC12_A_AUTOSCAN
    将多个通道采样数据依次存入同一个环形缓冲区中,缓冲区满后从头再存。
    6. 随机通道转换:ADC12_A_RANDOM
         */
        ADC12_A_startConversion(ADC12_A_BASE,
            ADC12_A_MEMORY_0,
            ADC12_A_SINGLECHANNEL);//启动ADC转换
    }
}
#pragma vector=ADC12_VECTOR
__interrupt
void ADC12_A_ISR (void)
{
    switch (__even_in_range(ADC12IV,34)){
        case  0: break;   //Vector  0:  No interrupt
        case  2: break;   //Vector  2:  ADC overflow
        case  4: break;   //Vector  4:  ADC timing overflow
        case  6:          //Vector  6:  ADC12IFG0
                 //Is Memory Buffer 0 = A0 > 0.5AVcc?
            result0 = ADC12_A_getResults(ADC12_A_BASE,ADC12_A_MEMORY_0);
                 //Exit active CPU
            //_DINT();
        case  8: break;   //Vector  8:  ADC12IFG1
        case 10: break;   //Vector 10:  ADC12IFG2
        case 12: break;   //Vector 12:  ADC12IFG3
        case 14: break;   //Vector 14:  ADC12IFG4
        case 16: break;   //Vector 16:  ADC12IFG5
        case 18: break;   //Vector 18:  ADC12IFG6
        case 20: break;   //Vector 20:  ADC12IFG7
        case 22: break;   //Vector 22:  ADC12IFG8
        case 24: break;   //Vector 24:  ADC12IFG9
        case 26: break;   //Vector 26:  ADC12IFG10
        case 28: break;   //Vector 28:  ADC12IFG11
        case 30: break;   //Vector 30:  ADC12IFG12
        case 32: break;   //Vector 32:  ADC12IFG13
        case 34: break;   //Vector 34:  ADC12IFG14
        default: break;
    }
}

多通道中断转换

void adc_init()
{
       //将P6.0引脚设置为ADC外设输入引脚
       GPIO_setAsPeripheralModuleFunctionInputPin(
               GPIO_PORT_P6,
               GPIO_PIN0 + GPIO_PIN1 + GPIO_PIN2
               );
       /*
                       初始化ADC12_A,设置采样保持信号源为SC时钟,时钟源为内部ADC12OSC,时钟预分频为1
        */
       ADC12_A_init(ADC12_A_BASE,
               ADC12_A_SAMPLEHOLDSOURCE_SC,
               ADC12_A_CLOCKSOURCE_ADC12OSC,
               ADC12_A_CLOCKDIVIDER_1);

       ADC12_A_enable(ADC12_A_BASE);//使能ADC12_A模块

       /*
                   配置采样定时器,缓冲区0-7的采样保持时间为64个时钟周期,缓冲区8-15默认为4个时钟周期,关闭多次采样模式
        */
       ADC12_A_setupSamplingTimer(ADC12_A_BASE,
               ADC12_A_CYCLEHOLD_64_CYCLES,
               ADC12_A_CYCLEHOLD_4_CYCLES,
               ADC12_A_MULTIPLESAMPLESDISABLE);


        ADC12_A_configureMemoryParam param = {0};
        param.memoryBufferControlIndex = ADC12_A_MEMORY_0;//配置内存缓冲区0
        param.inputSourceSelect = ADC12_A_INPUT_A0;//映射到输入通道A0
        param.positiveRefVoltageSourceSelect = ADC12_A_VREFPOS_AVCC;
        param.negativeRefVoltageSourceSelect = ADC12_A_VREFNEG_AVSS;//设置正负参考电压源为AVCC和AVSS
       // param.endOfSequence = ADC12_A_NOTENDOFSEQUENCE;//设置内存缓冲区0不是序列结束,连续转换不用
        ADC12_A_configureMemory(ADC12_A_BASE ,&param);

        param.memoryBufferControlIndex = ADC12_A_MEMORY_1;//配置内存缓冲区1
        param.inputSourceSelect = ADC12_A_INPUT_A1;//映射到输入通道A1
        ADC12_A_configureMemory(ADC12_A_BASE ,&param);

        param.memoryBufferControlIndex = ADC12_A_MEMORY_2;//配置内存缓冲区2
        param.inputSourceSelect = ADC12_A_INPUT_A2;//映射到输入通道A2
        ADC12_A_configureMemory(ADC12_A_BASE ,&param);


        //使能内存缓冲区0,1,2的中断ADC12IE0,ADC12IE1,ADC12IE2
        ADC12_A_clearInterrupt(ADC12_A_BASE, ADC12IFG0);
        ADC12_A_clearInterrupt(ADC12_A_BASE, ADC12IFG1);
        ADC12_A_clearInterrupt(ADC12_A_BASE, ADC12IFG2);

        ADC12_A_enableInterrupt(ADC12_A_BASE, ADC12IE0);
        ADC12_A_enableInterrupt(ADC12_A_BASE, ADC12IE1);
        ADC12_A_enableInterrupt(ADC12_A_BASE, ADC12IE2);
}
#pragma vector=ADC12_VECTOR
__interrupt
void ADC12_A_ISR (void)
{
    switch (__even_in_range(ADC12IV,34)){
        case  0: break;   //Vector  0:  No interrupt
        case  2: break;   //Vector  2:  ADC overflow
        case  4: break;   //Vector  4:  ADC timing overflow
        case  6:          //Vector  6:  ADC12IFG0
                 //Is Memory Buffer 0 = A0 > 0.5AVcc?
            result0 = ADC12_A_getResults(ADC12_A_BASE,ADC12_A_MEMORY_0);
            break;
        case  8:
            result1 = ADC12_A_getResults(ADC12_A_BASE,ADC12_A_MEMORY_1);
            break;   //Vector  8:  ADC12IFG1
        case 10:
            result2 = ADC12_A_getResults(ADC12_A_BASE,ADC12_A_MEMORY_2);
            break;   //Vector 10:  ADC12IFG2
        case 12: break;   //Vector 12:  ADC12IFG3
        case 14: break;   //Vector 14:  ADC12IFG4
        case 16: break;   //Vector 16:  ADC12IFG5
        case 18: break;   //Vector 18:  ADC12IFG6
        case 20: break;   //Vector 20:  ADC12IFG7
        case 22: break;   //Vector 22:  ADC12IFG8
        case 24: break;   //Vector 24:  ADC12IFG9
        case 26: break;   //Vector 26:  ADC12IFG10
        case 28: break;   //Vector 28:  ADC12IFG11
        case 30: break;   //Vector 30:  ADC12IFG12
        case 32: break;   //Vector 32:  ADC12IFG13
        case 34: break;   //Vector 34:  ADC12IFG14
        default: break;
    }
}
//启动转换,得加入延时,等待转换
delay_us(75);
        ADC12_A_startConversion(ADC12_A_BASE,ADC12_A_MEMORY_0,ADC12_A_REPEATED_SEQOFCHANNELS);//启动ADC转换
        delay_us(75);
        ADC12_A_startConversion(ADC12_A_BASE,ADC12_A_MEMORY_1,ADC12_A_REPEATED_SEQOFCHANNELS);
        delay_us(75);
        ADC12_A_startConversion(ADC12_A_BASE,ADC12_A_MEMORY_2,ADC12_A_REPEATED_SEQOFCHANNELS);
  • alipay_img
  • wechat_img
想法不去做终究就只是想法
最后更新于 2024-04-27
